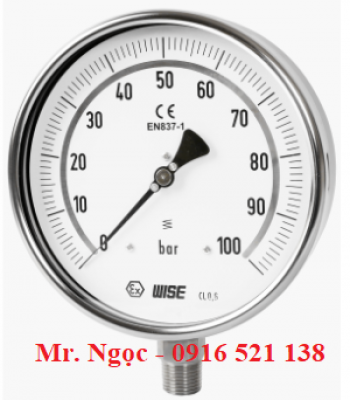

Đồng hồ áp suất Wise P252 được thiết kế dạng ống Bourdon truyền áp, bộ phận truyền áp là inox 316, vỏ inox 304 và chân ren inox 316 nên chịu được môi trường ăn mòn, hóa chất. Vật liệu inox chịu được nhiệt độ cao nên đồng hồ áp suất Wise P252 chịu nhiệt độ Max 200 độ, thích hợp đo áp suất lò hơi, nồi hơi.
Thông số đồng hồ áp suất Wise P252:
Nominal diameter |
63, 80, 100 and 160 mm |
Accuracy |
P2522 (63 mm) and P2523 (80 mm) : ±1.6 % of full scale
P2524 (100 mm) and P2526 (160 mm) : ±0.5 % of full scale
±1.0 % of full scale |
Scale range (MPa, kPa, bar) |
63 and 80 mm : -0.1 ~ 0 to 0 ~ 100 MPa
100 and 160 mm : -0.1 ~ 0 to 0 ~ 200 MPa |
Working pressure |
Steady : 75 % of full scale (63 and 80 mm)
100 % of full scale (100 and 160 mm)
Over range protection : 130 % of full scale |
Working temperature |
Ambient : -40 ~ 65 ℃
Fluid : Max. 200 ℃ |
Degree of protection |
EN60529/IEC529/IP67 |
Temperature effect |
Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale |
Standard features
Pressure connection |
Stainless steel (316SS) |
Element |
Stainless steel (316SS),
Model : P2524 (100 mm) and P2526 (160 mm)
<10 MPa : C type bourdon tube
≥10 MPa : Helical type bourdon tube
Model : P2522 (63 mm) and P2523 (80 mm)
<6 MPa : C type bourdon tube
≥6 MPa : Helical type bourdon tube |
Blowout protection |
Back, Rubber disc for 80, 100 and 160 mm
Top, Rubber disc for 63 mm |
Case |
Stainless steel (304SS) |
Cover |
Stainless steel (304SS)
Bayonet type |
Window |
Laminated safety glass |
Movement |
Stainless steel |
Dial |
White aluminium with black graduations |
Pointer |
Black painted aluminium alloy |
Process connection |
63 mm : ⅛", ¼" PT, NPT and PF
80 mm : ¼", ⅜" PT, NPT and PF
100 and 160 mm : ¼", ⅜", ½" PT, NPT and PF |
Certificates |
Pressure equipment directive (2014/68/EU) Annex III Module H
ATEX Ex II GD c IIc TX |
Option |
-
Zero adjustable pointer
(Only available with diameter 100 and 160 mm)
-
Zero adjustment (External) : 100 and 160 mm
-
Pressure connection and element : Monel
(Only available with diameter 100 and 160 mm)
-
Maximum Pointer
(Not applicable to under 3 bar, Only available with diameter 100 mm)
|
Đồng hồ áp suất Wise P252 hội tụ đủ thông số đáp ứng các tiêu chuẩn xuất châu âu nên là dòng đồng hồ tương đối cao cấp. Cạnh tranh về chất lượng và giá cả với thiết bị đo áp suất, áp kế đến từ châu âu như Wika - Đức.
Liên hệ mua đồng hồ áp suất Wise P252, hàng sẵn kho số lượng lớn, chứng từ đầy đủ.
